Ethernet UTP Cat6 Lan Cable With 8 Cores 23AWG Solid 0.57mm Bare Copper

  • 1
  • 2

Brand Name : BLG/OEM/ODM

Model Number : CAT6 UTP

Certification : CE/ROHS/ISO

Place of Origin : CHINA

MOQ : 50 Rolls

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 10-15 Work Days

Packaging Details : 305M/Roll/Easy Pull Box, 2 Boxes/Carton

Item : UTP Cat6 LAN Cable

Conductor Material : Bare Copper

Conductor Diameter : 23AWG/1*0.57mm

Insulation : HDPE

Pair : 4 Pairs

Filler : Cross Separator

Ripcord : Optional

Jacket : PVC

Contact Now

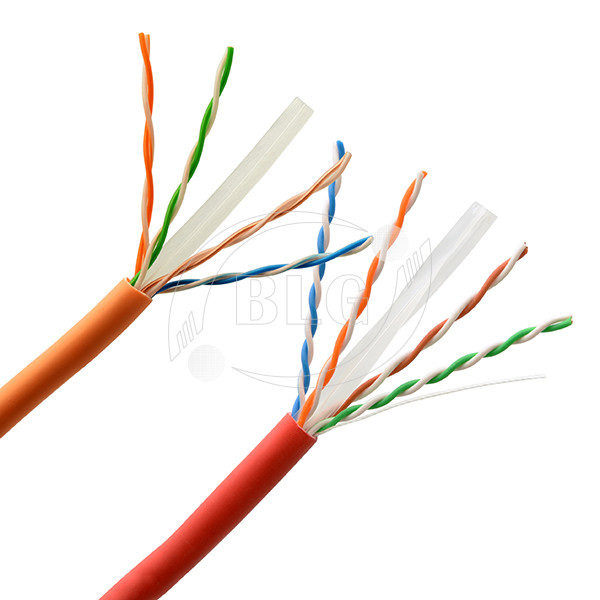

Ethernet UTP Cat6 LAN Cable 8 Cores 23AWG Solid 0.57mm Bare Copper

Cat6 cable is a standardized cable for Gigabit Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards. Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX , 1000BASE-T/1000BASE-TX and 10GBASE-T.

Product Description:

Item Indoor UTP Cat6 Cable
Conductor Conductor Diameter 0.574±0.01
Conductor Material Bare copper
Type of Conductor Solid
Insulation Dielectric(Insulation) Diameter 1.04±0.01
Dielectric(Insulation) Material Solid PE
Filler Material PE Separator
Ripcord Material Nylon
Jacket Jacket(sheath) Diameter 6.3±0.01
Jacket(sheath) Material Flame retardant PVC
Paired Number of Pair 4 Pairs
Pair Identification Pair 1: Blue,White / Blue
Pair 2: Orange,White / Orange
Pair 3: Green,White / Green
Pair 4: Brown,White / Brown
Weight (KGS/305M) 12
Attenuation(10MHz dB/100m) 5.6
NEXT (100MHz dB/100m) ≥38.3
ELFEXT (100MHz dB/100m) ≥19.8
RL (100MHz dB/100m) ≥17.3
Impedance (ohms ) 100
Operating Temperature Range(°C) -20 to 75



Applications:

  • 100Base-T4
  • 100Base-TX
  • 100VG-AnyLan
  • 1000 Base-T (gigabit Ethernet)
  • 155Mbps ATM
  • 622Mbps ATM


Competitive Advantage:

  • We are a leading manufacturer specialized in the field of network cable for more than 8 years.
  • We obtain the profession team in cable development & advanced, matured technology in production and quality control.
  • Guaranteed with the reliable quality and aftersale services, you will be delighted to find that imported directly from us is so easy and simple as you buy from you local suppliers but with very competitive prices and more choice.
  • Our Policy is Competitive price, Fast delivery, first-class service.
