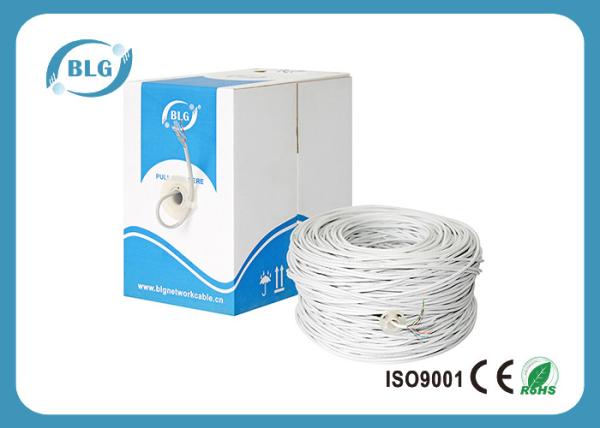

0.5mm Conductor Cat6 Lan Cable , 4 Pairs UTP Ethernet Cable For Indoor

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

0.5mm Conductor Cat6 Lan Cable , 4 Pairs UTP Ethernet Cable For Indoor

  • 1
  • 2
  • 3

Brand Name : OEM / BLG

Model Number : Cat6 LAN Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 50 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7-15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Conductor : COPPER

Conductor Diameter : 0.5mm

Insalution : 0.9mm HDPE

Jacket : PVC

Package : 305m/roll

Color : Optional

Contact Now

Copper Cat.6 LAN Cable 0.5mm 4Pairs UTP Ethernet Cable Use Indoor

Specification:

* Pairs: 4Pairs

* Working Temperature: -20°C ~ + 75°C

* Shielding: UTP/FTP/SFTP

* Conductor: 24AWG Bare copper or copper clad aluminum

* Insulation: HDPE

* Rip rope: optional

* Jacket: PVC or LSZH

* Application: Indoor or Outdoor

* Reference Standard: ANSI/TIA/EIA-568B,ISO/IEC11801

* Package: 300 or 305M/roll as per customer request

Cable Construction:


Conductor Dimension: 0.50mm


Core Dimension: 0.91mm,


No. Of Pairs: 4


Nom. OD: 5.6mm


Type of Jacket: PVC


Remark: 100MHz 350MHz

0.5mm Conductor Cat6 Lan Cable , 4 Pairs UTP Ethernet Cable For Indoor

0.5mm Conductor Cat6 Lan Cable , 4 Pairs UTP Ethernet Cable For Indoor

Other items Cat6 cable

UTP Cat6E FTP Cat6E SFTP Cat6E
Brand name DS Cable/OEM
Conductor Material 0.5~0.57±0.02mm CCA/CCAG/CU/BC
Inner cable color code Blue/White-Blue,Orange/White-Orange,Green/White-Green,Brown/White-Brown
Insulation 1.02±0.01mm PE
Filler seperator
Outer Jacket Thickness 0.55±0.05mm PVC/PE/LSZH
Shield None 0.4mmBC/TC/CCA Drain wire+Pet tape+AL Foil 0.4mmBC/TC/CCA Drain wire+Pet tape+AL Foil
Diameter 6.2±0.2mm as request
Rip cord Nylon materials non
Braid None None YES(16/6/0.12mmBC/TC/CCA)
Package Box, Carton, Polybag, according to your request
Cable length in Each box 305m
MOQ 1box
Delivery time sample 3 days/10-30 days upon your order
Nearest Port Ningbo/ Shanghai Port
Shipping By Sea, By air, By express
Standard/Certification CE,ROHS,ISO9001
Attenuation(10MHz dB/100m) 19.92 19.92 22.2
Impedance(ohm) 100±15
Operating Temperature -20℃-+75℃
NEXT(100MHz dB/100m) ≥36.3
ELFEXT (100MHz dB/100m) ≥23.8
