Waterproof Shielded Cat6a Lan Cable For Outdoor Ethernet 4 Pairs OFC 24 AWG

Product Categories

SHENZHEN BLG DIGITAL NETWORK CO., LIMITED

Contact Now

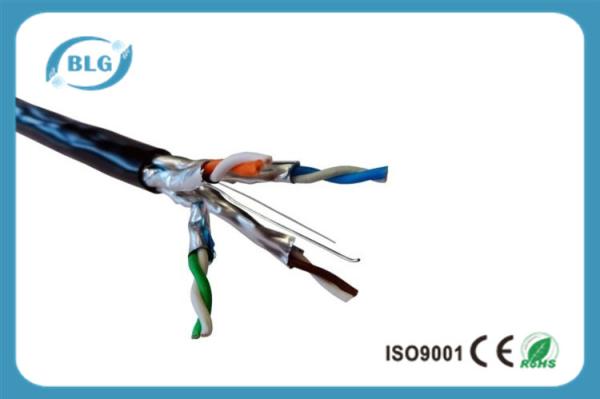

Waterproof Shielded Cat6a Lan Cable For Outdoor Ethernet 4 Pairs OFC 24 AWG

Name: Waterproof Shielded Cat6a Lan Cable For Outdoor Ethernet 4 Pairs OFC 24 AWG
Brand: BLG/ OEM
Price: 23 USD

Wholesale Waterproof Shielded Cat6a Lan Cable For Outdoor Ethernet 4 Pairs OFC 24 AWG from china suppliers

Brand Name : BLG/ OEM

Model Number : CAT6A

Certification : ISO/CE/ROHS

Place of Origin : China

MOQ : 50 rolls

Price : US$23~88 / roll

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container /week

Delivery Time : 7~15days

Packaging Details : 305m/roll/ box, 2 boxes/carton

Colour : Black

Conductor : OFC

Jacket : PE

Insulation Material : HD-PE

Twist : 4 pairs

Working temperature : -60°c-75°c

Contact Now

Ethernet Cable Shielded Cat6a 4 Pairs OFC 24 AWG Use

Outdoor Waterproof

Product Application

Computer Network Cabling, Broadband Network Communication, Ethernet Network,

Audio and Data Transmission. Designed for network adapters, hubs, switches,

DSL/cable, modems, patch panels, and other twisted-pair applications.

PRODUCT & SPEC.		CAT6A FTP
CONDUCTOR	Material	Oxygen-free Copper
	OD	0.51mm 24AWG
	Number	4Pairs
INSULATION	Material	HDPE
INSULATION	OD	Φ1.0~1.02mm
JACKET	Material	PE/LOSH
	Color	Black
	Nom. Thickness	Φ0.7mm±0.05MM
Ripcord		Yes
Drain Wire		Tin plated copper
Shield		Aluminum foil
Fire Rating		CM,CMR,CMP
PERFORMANCE	20℃ Conductor Resistance	≤93.5Ω/km
	Pair to Pair Capacitance Unbalance	≤2%
	Pair to Ground Capacitance Unbalance	≤4%
	Operating temperature(℃)	-20℃~+70℃
MARKING ON JACKET		On your request (Print your brand)

Features
• Specified to 500MHz
• Category 6A compliant
• Suitable for 10GBASE-T 10 Gigabit Ethernet Applications
• Individual foil screen
• Compact but robust design
• Low Smoke Zero Halogen Outer Sheath
• Supports Power Over Ethernet (POE) Plus

Packing:

1	305M/Roll ; Packed in Pull box; 2 Pull Boxes / Carton Box;
2	Note: Wooden Reel; Plastic Reel; Paper Reel Available
3	Note: 100M/Roll ; 500Feet/Roll; Or other length Available

Waterproof Shielded Cat6a Lan Cable For Outdoor Ethernet 4 Pairs OFC 24 AWG
