High Speed Cat 7 Ethernet Cable 1000 FT / Blue Cat7 Bulk Network Cable

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

High Speed Cat 7 Ethernet Cable 1000 FT / Blue Cat7 Bulk Network Cable

  • 1
  • 2

Brand Name : BLG/OEM/ODM

Model Number : S/FTP CAT7 LAN Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 50 rolls

Price : US$10~100/rolls

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 containers /week

Delivery Time : 7~15days

Packaging Details : 305m/Box. 1000ft/box, 500m/drum

Conductor Material : Bare Copper

Conductor Diameter : 23AWG / 1*0.57mm

Insulation : HDPE

Shielding 1 : Al Foil Pair Shielded

Shielding 2 : CCS Braiding Shielded

Jacket : PVC / LSZH

Contact Now

1000FT Solid 23AWG Copper CAT7 LAN Cable Communication Network S / FTP

CAT7 Cables with Skin-foam-skin insulation and pair-shield construction designing have excellent shielding performance of anti-EMI, easy to realize 600MHz bandwidth. All performance parameters comply to the requirements for CAT7 of IEC 61156-5 & EN 50173.

Description:

  • Rated Temperature: 60℃, 75℃, 90℃
  • Solid Bare Copper Conductor
  • PVC / LSZH Jacket, RoHS Compliant
  • Comply to IEC61156-5, EN50173 & ISO 11801
  • Operating Temperature: -30 ~ +50℃
  • Minimum Bending Radius: 8D

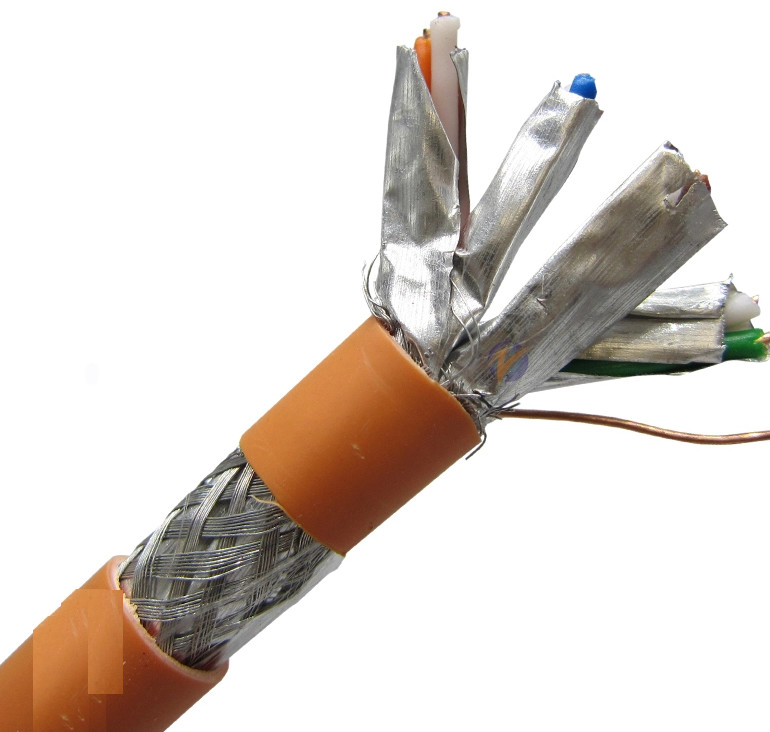

CAT7 Cable Construction:

Item Indoor CAT7 S / FTP
Conductor Conductor Diameter 0.58±0.01
Conductor Material Bare Copper
Type of Conductor Solid
Insulation Dielectric(Insulation) Diameter 1.35±0.01
Dielectric(Insulation) Material Skin-foam-Skin
Shielding Type of Shielding Pair Shield
Material Al Foil+Braiding
Ripcord Material Optional
Jacket Jacket(sheath) Diameter 7.9±0.2
Jacket(sheath) Material PVC
Paired Number of Pair 4 Pairs
Pair Identification Pair 1: Blue,White / Blue
Pair 2: Orange,White / Orange
Pair 3: Green,White / Green
Pair 4: Brown,White / Brown

Electrical Characteristics:

Frequency (MHz) Impedance (Ohm) Return Loss (≥dB) Attenuation (≤dB/100m) NEXT (≥dB/100m) PS-NEXT (≥dB/100m) ELFEXT (≥dB/100m) PS-ELFEXT (≥dB/100m)
1 100±15 20.00 - 78.00 75.00 78.00 75.00
4 23.00 3.74 78.00 75.00 78.00 75.00
8 24.50 5.24 78.00 75.00 75.90 72.90
10 25.00 5.86 78.00 75.00 74.00 71.00
16 25.00 7.41 78.00 75.00 69.90 66.00
20 25.00 8.29 78.00 75.00 68.00 65.00
25 24.30 9.29 78.00 75.00 66.00 63.00
31.25 23.60 10.41 78.00 75.00 64.10 61.10
62.5 21.50 14.88 75.50 72.40 58.10 55.10
100 20.10 19.02 72.40 69.40 54.00 51.00
150 18.90 23.56 69.80 66.80 50.20 47.20
200 100±22 18.00 27.74 67.80 64.90 48.00 45.00
250 17.30 30.97 66.40 63.40 46.00 43.00
300 100±25 17.30 34.19 65.20 62.20 44.50 41.50
600 17.30 50.10 60.70 57.70 38.40 35.40

Applications:

  • VoIP
  • ISDN
  • Token
  • 100M TP-PDM
  • Analog and Dagital Video
  • TR-16 Active and Passive
  • 155M/522M/1.2GATM
  • IEEE802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T

Competitive Advantage:

  • We are a leading manufacturer specialized in the field of network cable for more than 8 years.
  • We obtain the profession team in cable development & advanced, matured technology in production and quality control.
  • Guaranteed with the reliable quality and aftersale services, you will be delighted to find that imported directly from us is so easy and simple as you buy from you local suppliers but with very competitive prices and more choice.
  • Our Policy is Competitive price, Fast delivery, First-class service.

High Speed Cat 7 Ethernet Cable 1000 FT / Blue Cat7 Bulk Network Cable


Product Tags:

cat 7 ethernet cable



category 7 cable


Wholesale High Speed Cat 7 Ethernet Cable 1000 FT / Blue Cat7 Bulk Network Cable from china suppliers
