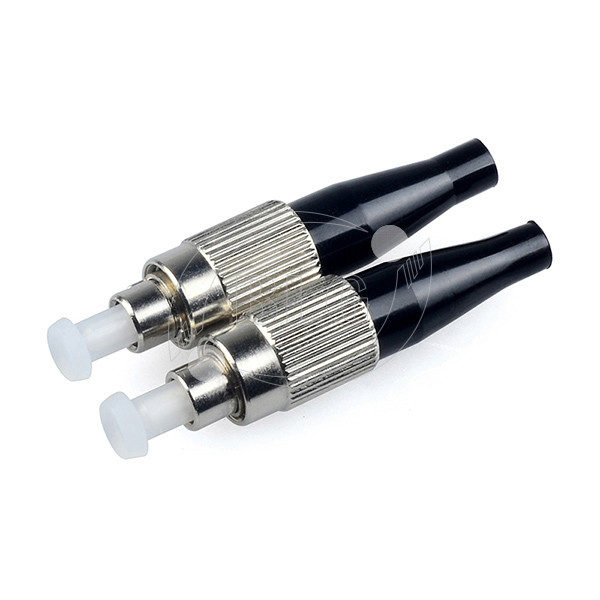

Assembly of the FC type quick connector requires only normal fiber preparation tools: a fiber
stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the
buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector.Installation
takes just minutes and couldn't be easier.
The Field Assembly Connector series are already a popular solution for optical wiring inside
buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already
proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative
carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC
variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and
multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-
mode versions are available with SPC or APC ferrules.
Applications:
Fiber Optic Communication System and Telecommunication networks
Fiber Optic Data Transmission
CATV network
Optical Access Network
Fiber to the Subscriber (FTTX) applications
Optical Cable Interconnection
Maintenance or emergency restoration of fiber networks
Repair/Replacement requirements
Fiber Optic Equipment
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE
Specifications:
| Characteristics | Value/Performance |
| IL (Insertion Loss) | PC/UPC≤0.2dB, APC≤0.3dB |
| RL (Return Loss) | PC/UPC≥50dB, APC≥60dB |
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm |
| Fiber Mode | Single/ Multi mode |
| Connector Type | FC |
| Operating temperature | -40~85℃ |
| Tensile strength | >20N
|
Quality Certification:
1. Good Anti-electromagnetic interference (EMI)
2. Good Electromagnetic compatibility (EMC) which is in accordance with FCC Part15.
3. Meets ISO9001, TUV, CE, FCC, CAS and RoHS certificates
