UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core Conductors PVC Jacket

Name: UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core Conductors PVC Jacket
Brand: BLG/ OEM
Price: 1 USD

Wholesale UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core Conductors PVC Jacket from china suppliers

Brand Name : BLG/ OEM

Model Number : FlatPatch Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000 Pieces / Week

Delivery Time : 5 - 15 Work Days

Packaging Details : 1 Piece / PE Bag, 200 Pieces / Carton

Twisted Pair : 4 pairs

Conductor Material : Stranded Copper

Connector : 2*RJ45 8P8C

Jacket : PVC

Length : customized

Package : poly bag

Contact Now

UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core conductors

Item	Flat Patch cable
Product Name	Cat6 flat patch cord
Inner Conductor	Material	BC
Inner Conductor	Diameter	Stranded 7*0.08mm ( 32AWG )
Insulation ( Dielectric )	Material	PE (Polyethylene)
Shielded Layer	Material	None
Drain Wire	Material	None
Twisted Pair	N/A	Pair 1: Blue, White/ Blue
		Pair 2: Orange, White/ Orange
		Pair 3: Green, White/ Green
		Pair 4: Brown, White/ Brown
Outer Jacket	Material	PVC
Connector	RJ45 Golden-plated, 8P8C
Reference Standard	Category 6 ANSI/ TIA/ EIA 568C & ISO/ IEC11801 Standard
Rated Temperature	-20℃-70℃
Certificate	ISO 9001,CE,ROHS,FCC,UL
Supports Transmission	Digital and analogue voice, data and video signal

Features:

- Cable Type: CAT6 4-Pair UTP
- Outside Diameter: 5.2*2.3mm
- Connector Type: RJ45
- Conductor Material: 100% Bare Copper
- Contact Plating: 50 Micron Gold Plated
- Conductor Gauge: 32 AWG
- Cable Performance: Up to 250 MHz
- Cable Structure: Stranded
- RoHS Compliant

Other Round patch cable specification:

Shape	Conductor		Insulation		Core Number	Jacket
Shape	AWG	Specification (mm)	Material	Thickness (NOM.mm)	Core Number	Material	Thickness (NOM.mm)	OD (NOM.mm)
Circular Cable	26	1/0.404	HD-PE	0.18	4P	PVC or LSNH	0.55	4.8
	26	7/0.16	HD-PE	0.18	4P	PVC or LSNH	0.55	5.0
	24	1/0.511	HD-PE	0.18	4P	PVC or LSNH	0.55	5.4
	24	7/0.203	HD-PE	0.18	4P	PVC or LSNH	0.55	5.5
Flat Cable (Non-sign)	30	7/0.10	HD-PE	0.13	4P	PVC	0.30	1.75*6.2
	28	7/0.127	HD-PE	0.13	4P	PVC	0.30	1.90*7.0
	24	7/0.203	HD-PE	0.18	4P	PVC	0.50	3.0*9.0

UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core Conductors PVC Jacket

Product Tags:

cat5e utp network patch cable

rj45 cat6 patch cable

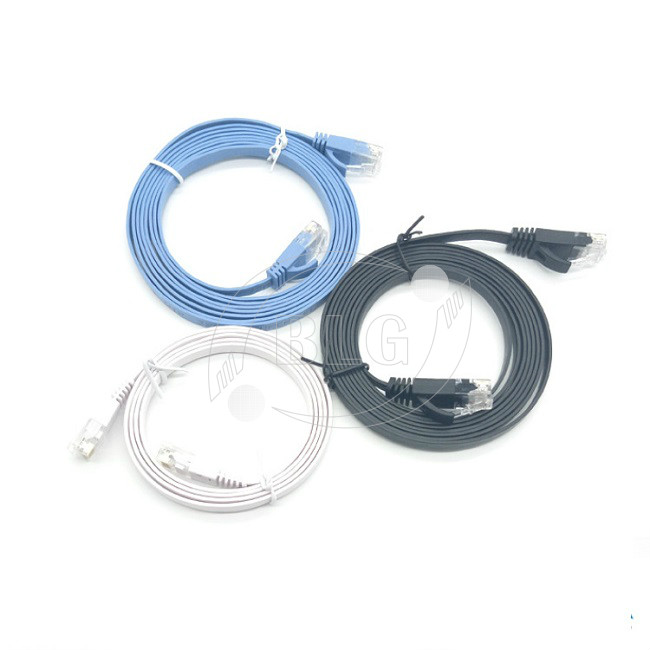

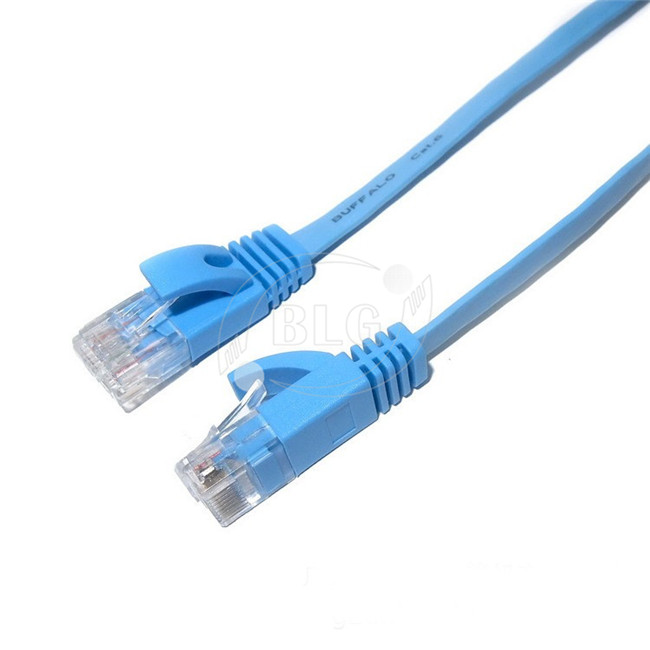

UTP Flat Patch Cable CAT6 Stranded 32AWG Copper 8 Core Conductors PVC Jacket Images
